ISIJET direct gas-fired air heaters have capacity options starting from 40 kW and going up to 120 kW. They do direct heating with a very high thermal efficiency. They use LPG and LNG as fuel thus produce much less amount of CO2 and other combustion products compared to an oil-fired(diesel) heater. Having gas safety valve, electronic automatic ignition, electronic control unit(PCB) and flame sensing photocell sensor as standard; they ensure a safe and reliable heating source that is fully automatic and user friendly.
• Produces hot air with 100% heating efficiency
• Stainless steel combustion chamber and body for
durability

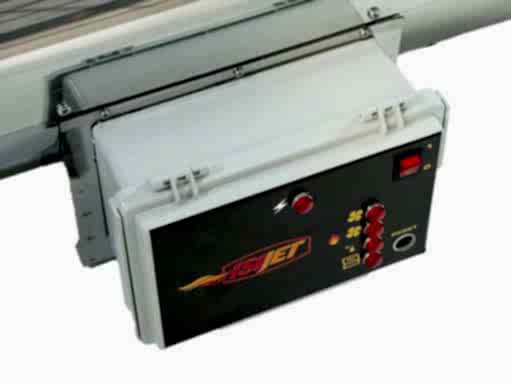

• Electronic control unit (PCB)
• Flame sensing photocell sensor as standard
• Automatic ignition
• Gas safety valve as standard
• Digital onboard thermostat or central computer
connection availability
• Combustion chamber cooling function as standard
• Only fan usage for summer ventilation
• Overheating safety thermostat as standard

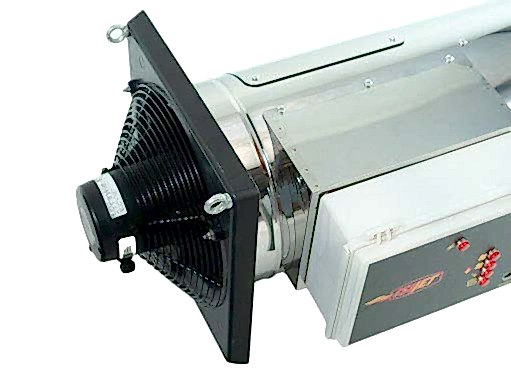

• Powerful fan having high air blowing capacity
• Electric motor with thermal protection
• Solid and durable frame
• Poultry and livestock growing facilities
• Horticulture and agriculture
• Greenhouses
• Gardens
MODEL | CAPACITY | AIR FLOW (m³/h) | CONSUMPTION (kg/h) | FREQUENCY | DIMENSIONS (mm) | WEIGHT (kg) | |
kcal/h | kW | ||||||
GX-40 | 34.400 | 40 | 3.750 | 2,9 | 220 V 50 HZ | 580x500x1000 | 29 |

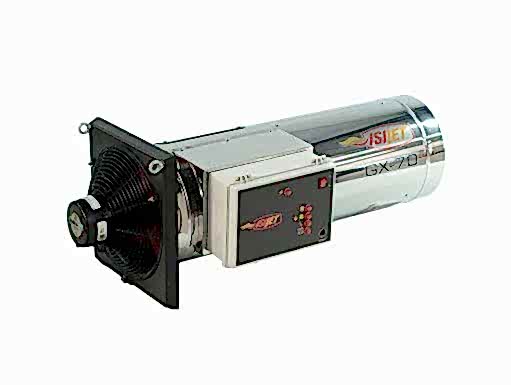

GX-70 | 60.200 | 70 | 4.300 | 4,8 | 220 V 50 HZ | 622x520x1000 | 33 |
GX-95 | 81.700 | 95 | 6.400 | 6,7 | 220 V 50 HZ | 675x705x1170 | 55 |
GX-120 | 103.200 | 120 | 7.800 | 8,5 | 220 V 50 HZ | 675x725x1300 | 70 |
